Instructions &Documentation
Everything you need to get your eMotorack set up and on the road. Download assembly instructions, parts lists, and quick setup guides below.
Know YourCarrier
Before starting assembly, familiarize yourself with the carrier in its installed position, folded upright, and the mounting hardware up close. These reference photos correspond to steps in the full instruction PDF.
- Top-left: Carrier flat/loaded position on 2" hitch
- Top-right: Carrier folded upright for storage
- Center: Close-up of wheel cradle and ratchet strap anchor points
- Bottom: Standalone carrier showing hitch shank and mounting hardware
E-Moto Hitch Carrier
Single Carrier — Base Unit
Complete documentation for the E-Moto Hitch Carrier. Includes full assembly instructions, parts reference, and quick setup guide.

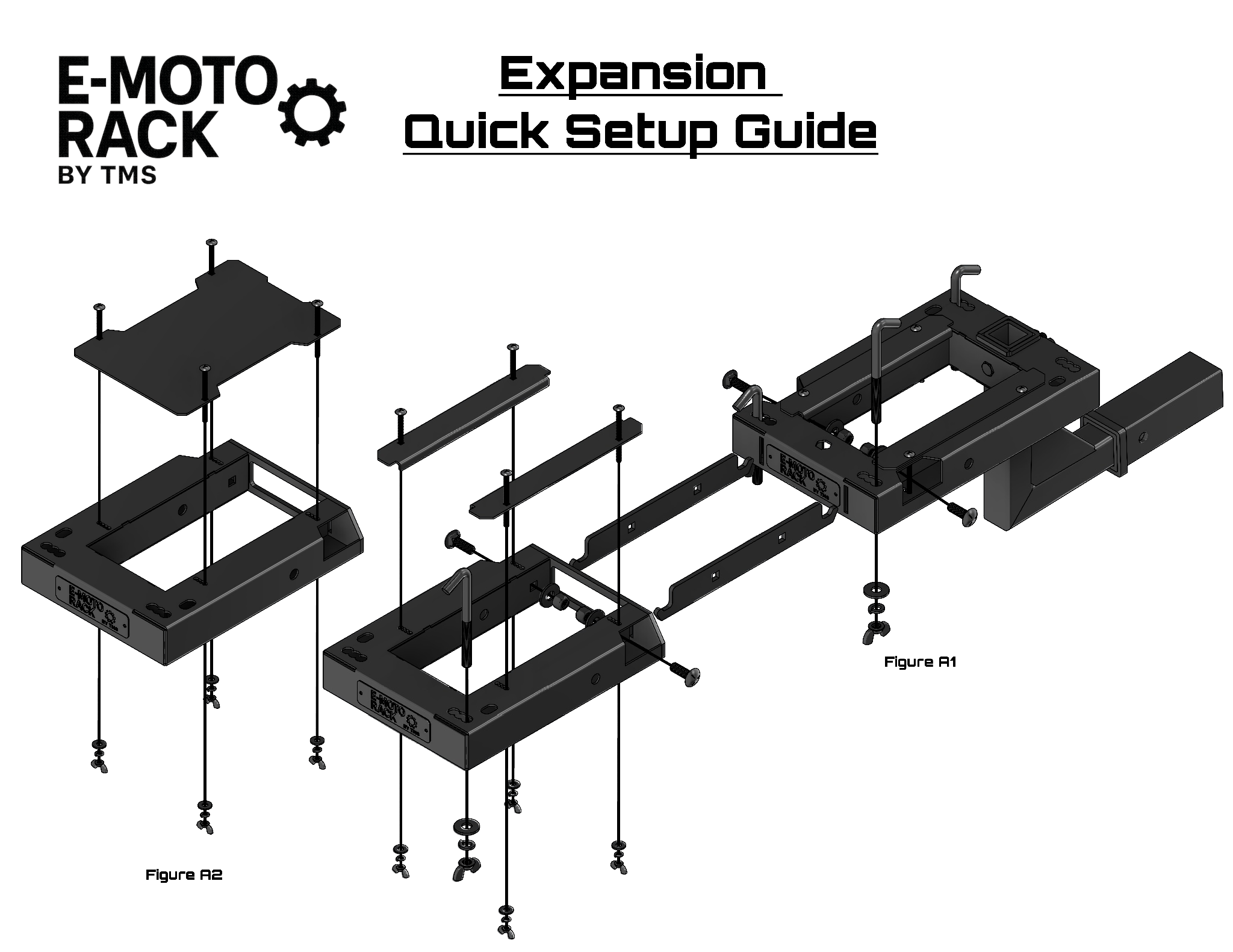

Dual Carrier Add-On
Expansion Kit — Adds Second Bike Slot
Documentation for the Dual Carrier Expansion Kit. Covers how to attach the add-on to your existing single carrier, parts included, and quick setup.
Video Instructions
Step-by-step video walkthroughs are on the way. Check back soon for full assembly and setup videos for both the Single Carrier and Dual Carrier Expansion Kit.
Loading & Use Guidelines
Before You Load
Confirm your vehicle's hitch receiver is rated for the combined weight of the carrier and bike. Insert the hitch shank fully and secure the hitch pin before loading any weight. The carrier platform must be in the flat (horizontal) position before loading.
Securing the Bike
Place the bike in the wheel cradles with the front wheel forward. Route ratchet straps through the integrated anchor points on both sides of the carrier. Tighten until the bike has no lateral movement. Do not over-tighten to the point of compressing suspension.
Weight Limits
The Single E-Moto Carrier is rated for bikes up to 300 lbs. The Dual Carrier System (Single + Extension Kit) is rated for a combined load up to 400 lbs. For e-motos, removing the battery pack before loading significantly reduces weight and is recommended for dual-bike loads.
On the Road
Check strap tension after the first 10 miles and again at each stop. The carrier folds upright when not in use — pivot the platform vertical and secure it before driving without a bike loaded. Refer to the full instruction PDF for torque specs and hardware details.
